WKM EVO

WKM EVO

Mixer with Double Eight Tools with Removable Bowl Trolley

  • Capacity (kg): 180 / 220 / 280 / 440 / 540 / 800

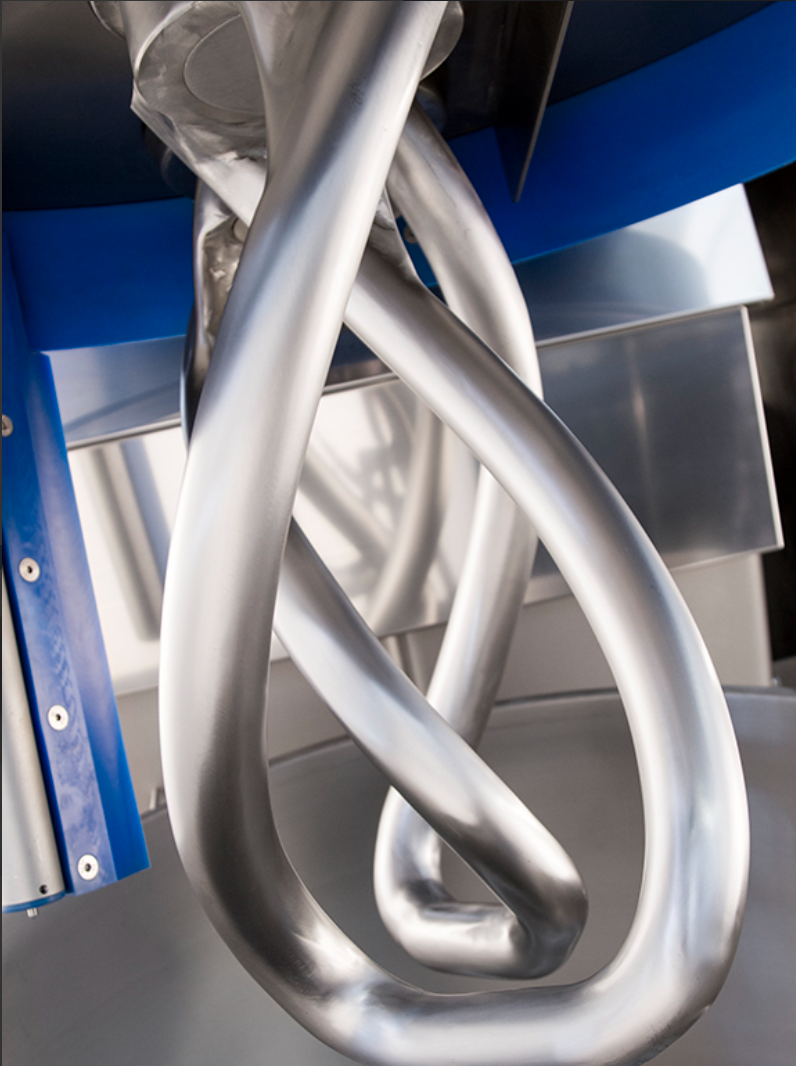

  • Double-eight mixer with bowl wall scraper.
  • Painted steel structure raised from the ground on 4 adjustable feet.
  • Stainless steel bowl and utensils.
  • Electrical controls via a 7” touch-screen panel.
  • Automatic opening at the end of the cycle.
  • Recipe history memory.
  • Mixing recipes with “time” parameter or “absorbed energy” parameter.
  • Two independent motors for tools and bowl.
  • Tool and bowl speed variation system via inverter (programming on the on-board computer – requires a class B differential).
  • Closed, dustproof stainless steel tank lid with blue polyethylene edge.
  • Work area and electrical panel with IP65 protection rating (totally protected against dust and water jets).
  • Motion transmission to the tools via pulleys and belts. Motion transmission to the bowl by coupling with an elastic and tilting friction wheel with speed reduction by belts.
  • Bowl traction ring equipped with anti-slip system (thermally insulated, anti-grease, and anti-condensation).
  • Bowl trolley on wheels.
  • Trolley release/coupling and head lifting/lowering with hydraulic cylinders controlled by a special control unit.
  • Electrical panel in a separate cabinet on the right side of the machine.
  • Machine structure, trolley, casing, and electrical panel in stainless steel.
  • Centralized lubrication of main bearings (manual or automatic).
  • Air conditioner mounted on the electrical panel.
  • Control computer with a 10” touch screen monitor.
  • Interface with automatic dosing.
  • Sensitive anti-pinch ring.
  • Dough temperature detection system inserted in the scraper.
  • Dough cooling device through injection of cryogenic gases.
  • Electrical panel on the left side or separated from the machine body.
  • Hopper for inserting micro ingredients on the tank lid.
  • Connections for loading powders and/or liquids.
  • Drainage hole on the tank bottom for washing water.
  • Bowl motion transmission via pinion on crown gear.
  • Special (customized) tools.
  • Bayonet connection for interchangeable tools.
  • Additional tools (bayonet connection required).
