MR AVANT

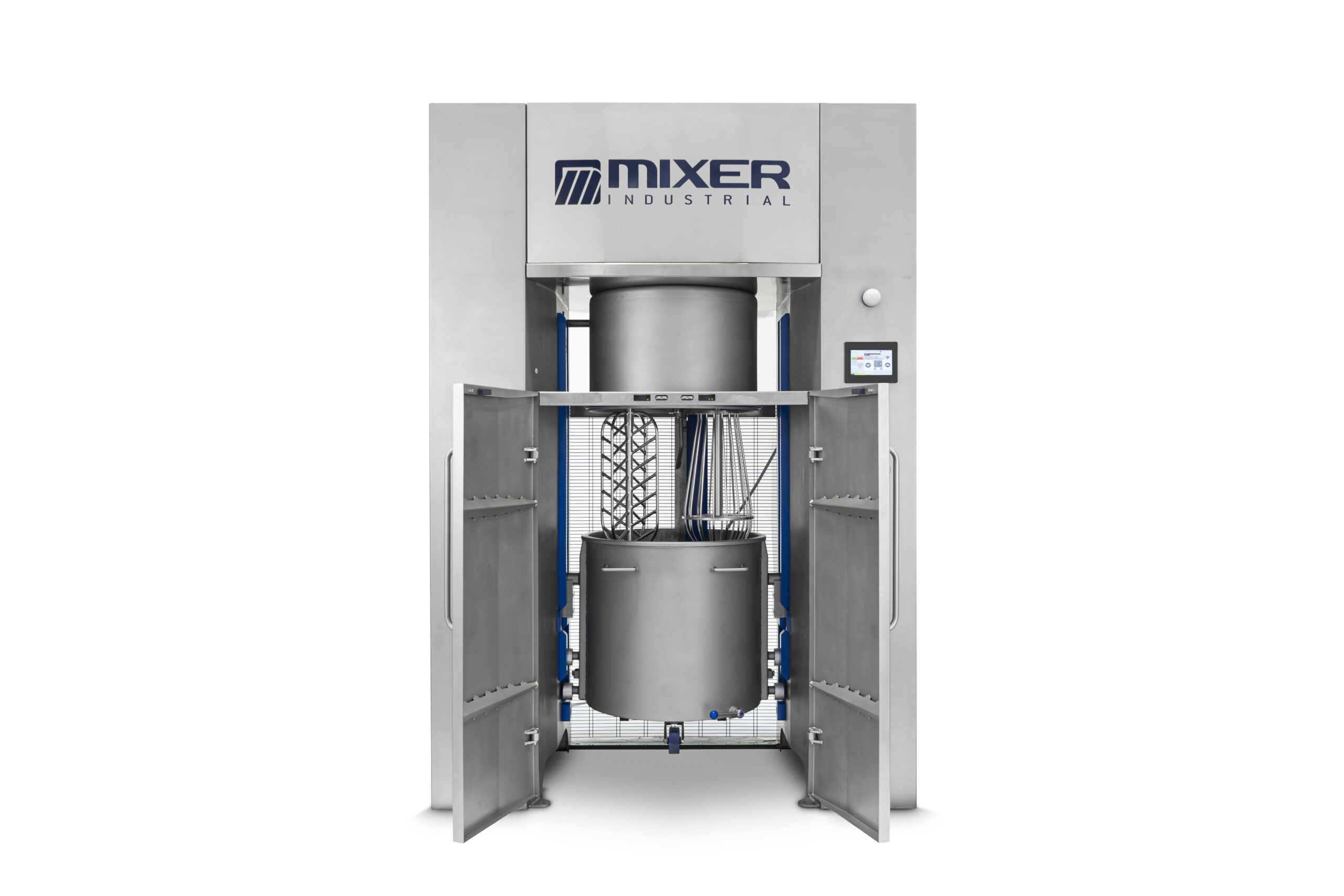

Double Tools Planetary Mixer

• Capacity (LT): 120 / 200 / 300 / 400 / 600 / 800
• Planetary mixing machine.
• Kneading system with double tool and quick coupling scraper.
• S/S bridge structure and work chamber.
• Bowl on wheels with manual valve on the base.
• Programming via PLC and 7″ touch screen.
• Automatic opening at the end of the cycle (selectable option).
• Recipes carried out according to “time” parameter or “drawn current” parameter.
• Detailed recipe records.
• Tool motor controlled by inverter (residual current switch type B necessary) for continuous variation of rotation speed.
• Machine supplied together with: components for pressurized operation with air filtration circuit, a bowl trolley, two optional working tools, and a scraping device.
• Automatic product discharge with automatic ball valve with pneumatic drive on bowl bottom.
• Additional tools.
• High-pressure wash ring with motorized rotating heads.
• Temperature probe.
• Flanged circular inputs for the introduction of raw materials into the mixing bell.
• Tools with independent speed.
• Mobile device to collect product under the tools (drip plate).
• Inspection port hole on the bell with manually openable lid.
• Steam heating / Water cooling kit.
• Steam heating kit.
• Pasteurization kit.
• Valves for input of ingredients into the bell.
• Inverter and PLC of different configuration or brand.
