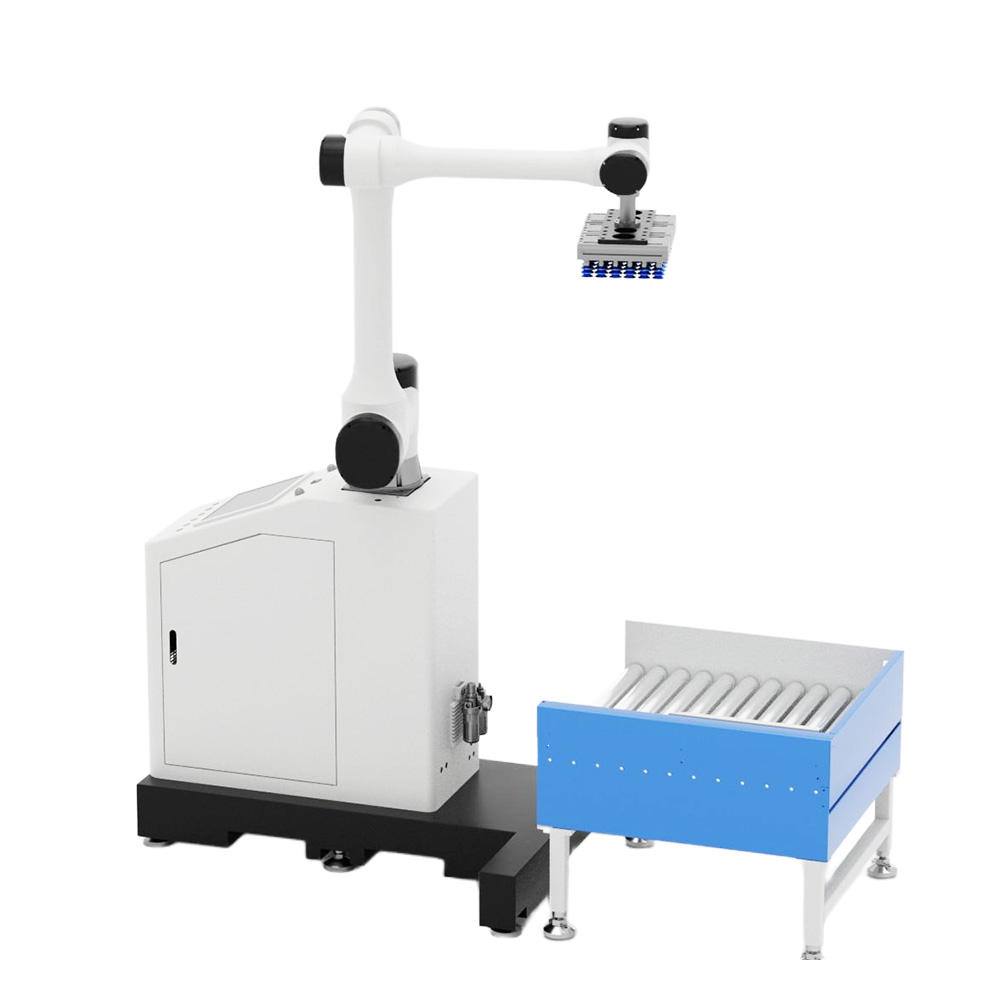

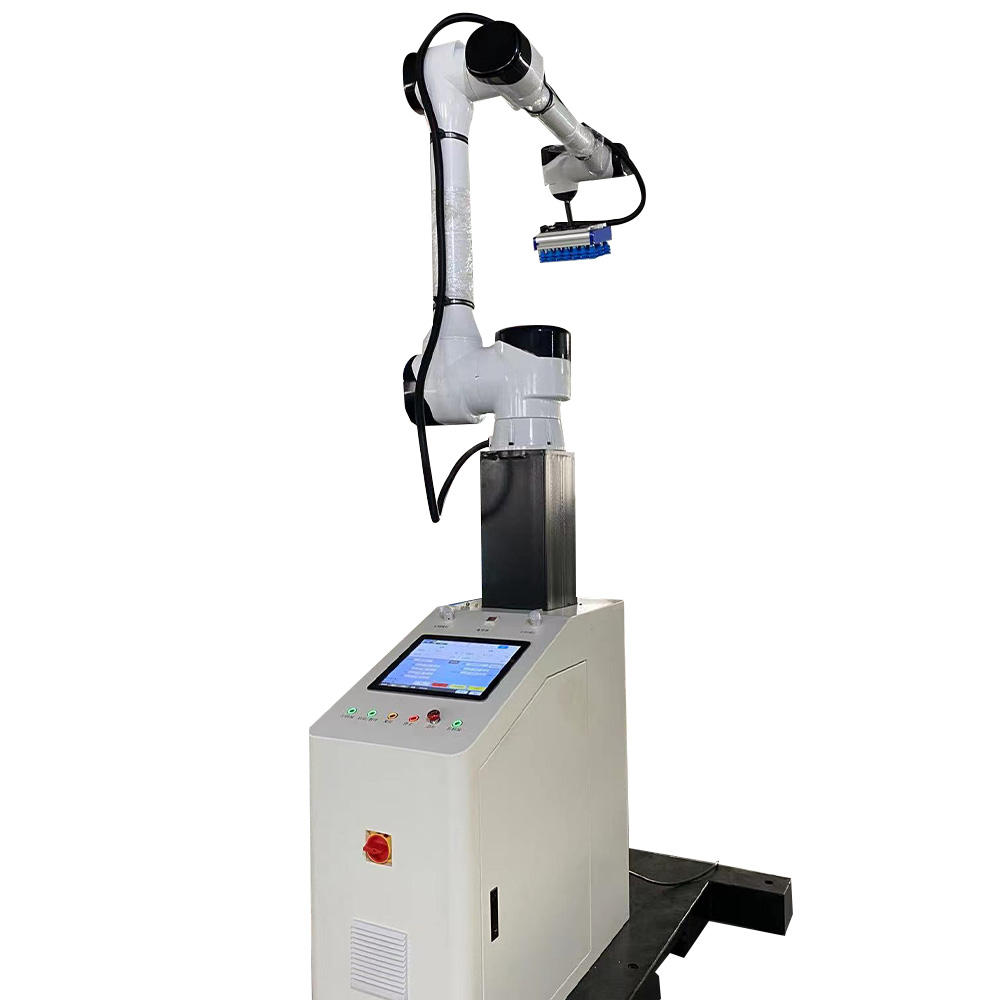

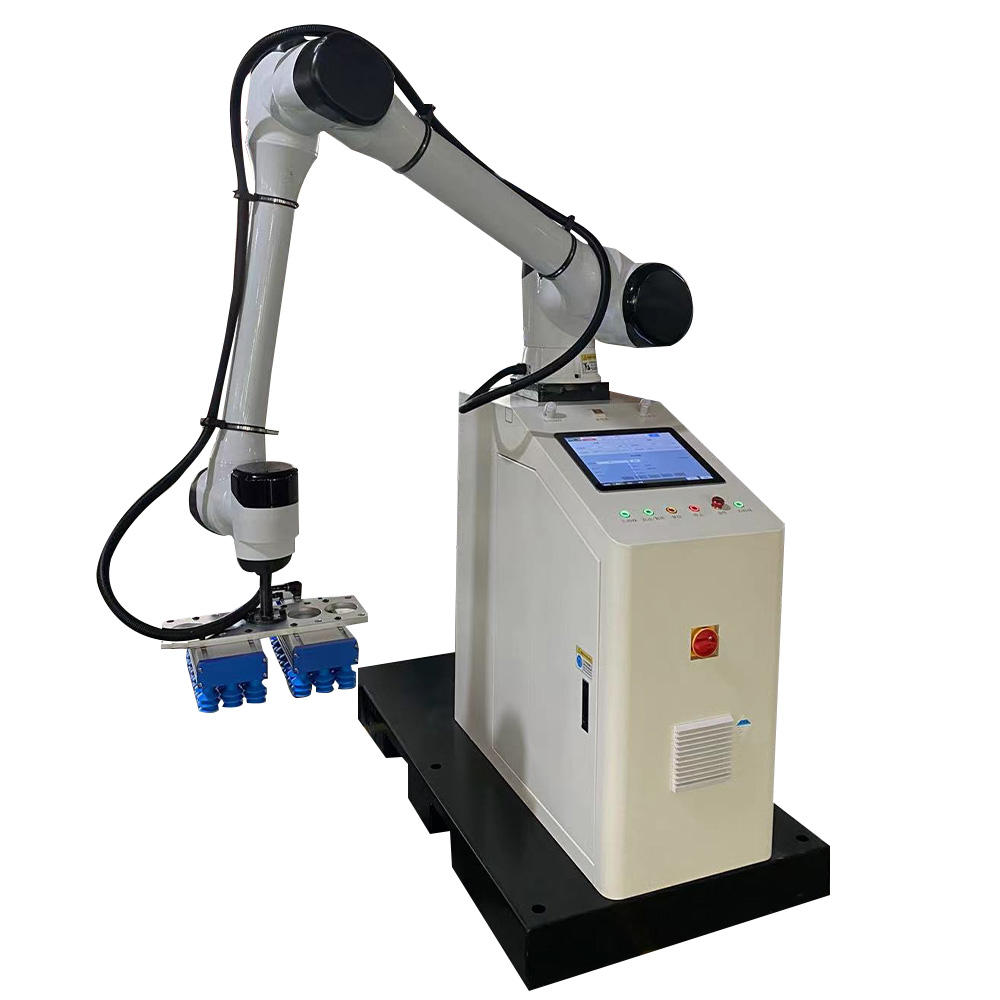

Collaborative Robotic Palletizing System
Collaborative Robotic Palletizing System
Flexible, Efficient End-of-Line Automation for Modern Bakeries
The Collaborative Robotic Palletizing System provides a versatile, space-efficient solution for automating carton handling, stacking, and palletizing operations in commercial bakeries and food production facilities.
Featuring a six-axis robotic arm with payload options of up to 50 kg, this system is designed to streamline repetitive material-handling tasks, reduce manual labour requirements, and improve consistency throughout the packaging process.
With flexible programming, precision motion control, and compatibility with conveyor systems and various end-of-arm tooling options, the robotic palletizer can be configured to accommodate different carton sizes, stacking patterns, and production requirements.
Ideal for bakeries looking to modernize their end-of-line operations, this system offers a practical automation solution for improving productivity while maintaining flexibility as production demands evolve.
Key Features & Benefits
- Flexible Payload Options: Available in 30 kg and 50 kg configurations to accommodate a range of packaged products.
- Six-Axis Robotic Arm: Provides versatile movement for accurate carton handling, stacking, and palletizing.
- Consistent Performance: Designed for repeatable positioning and reliable automated handling.
- Adaptable Integration: Compatible with conveyor systems, sensors, grippers, and other automation components.
- Reduced Manual Handling: Automates repetitive lifting and stacking tasks, helping reduce operator workload.
- Flexible Production: Configurable for different palletizing patterns, carton dimensions, and production layouts.
- Integrated Safety Features: Includes collision detection, emergency stop functionality, and torque-limiting capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Robot Configuration | 6-Axis Collaborative Robot |
| Payload Capacity | 30 kg / 50 kg options |
| Maximum Reach | 1,700 mm (30 kg configuration) |
| Positioning Repeatability | ±0.1 mm (30 kg configuration) |
| Operating Capacity | 8–10 cartons/min (listed configuration) |
| Power Supply | 220 V |
| Primary Applications | Carton Handling, Pick-and-Place, Palletizing |
| Integration Options | Conveyors, Grippers, Sensors, Vision Systems |
Specifications vary by robot model and system configuration.
Applications
Suitable for a variety of bakery and food production operations, including:
- Packaged bread and bun carton palletizing
- Finished-product case handling
- End-of-line packaging automation
- Carton stacking and pallet preparation
- Automated product transfer between production stages
